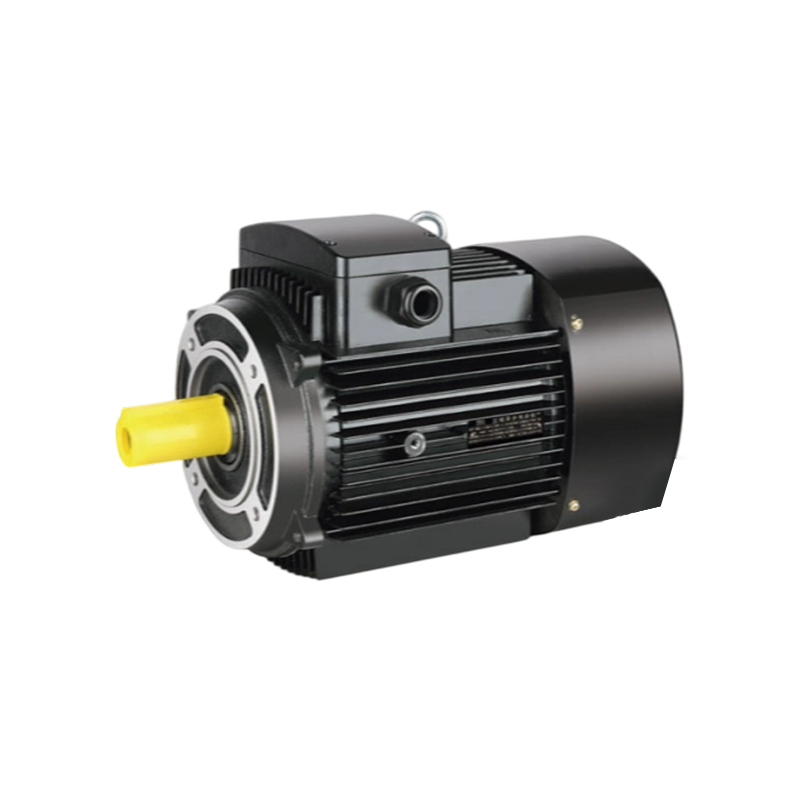

YE3/YE4 Square Aluminum Housing Motor

YE3/YE4 Series three-phase asynchronous electric motor is developed as a new design of our company based on the characteristics of water pumps. YE3/YE4 Series motor with unique appearance, IP55 protection degree, class F insulation, and a good function of energy saving can reach high efficiency class in line with international standard IE2 and Chinese standard efficiency class 2, which has made it an ideal energy saving product. Moreover, it has other good features like high starting torque, slight noise, low vibration, optimum structure, convenient operation, and so on.

In order to solve problems like high torque, vibration, and noise in pumps, we uThe se cast iron material for all front flange and rear endshield in our new JLP motor, and this improvement can completely meet the application of various types of pumps.


Ambient tempetature: -15℃<0<40℃
Altitude: altitude should be lower than 1ooo meters above sea level.
Rated voltage: 380V, 400V, 415V
Rated frequency: 50HZ, 60HZ
Connection: Star-connection for 3kw or less, whereass deltaconnection for 4kw or more.
Duty/Rating: Continuous (S1)
Insulation class: F, the temperature rise of the stator winding is examined at 8ok (by resistance method).
Protection class: The main body of the motor is IP54, IP55, but the terminal boxeaches IP55.
Cooling method: IC411

PREV：No previous article NEXT：No next article
  • Product Details
  • FAQ
Type No. Rated output Speed IN
(A)		 EFF(%) Power
factor(cosø)		 Rated torque
(Tn)		 TST/TFL TM/TFL IST/TFL Weight
(Kg)
KW HP
Synchronous Speed 3000 rpm
YE3-71M1-2 0.37 0.5 2800 0.99 74.8 0.8 1.26 2.3 2.3 6.1 6.2
YE3-71M2-2 0.55 0.75 2800 1.4 77.2 0.82 1.87 2.2 2.3 6.3 7.4
YE3-80M1-2 0.75 1 2880 1.7 80.7 0.83 2.49 2.3 2.3 9.8 10.5
YE3-80M2-2 1.1 1.5 2880 2.43 82.7 0.83 3.65 2.3 2.3 7.3 14
YE3-90S-2 1.5 2 2895 3.25 84.2 0.83 4.96 2.3 2.3 7.6 18
YE3-90L-2 2.2 3 2895 4.57 85.9 0.85 7.26 2.3 2.3 7.8 23
YE3-100L-2 3 4 2895 5.94 87.1 0.88 9.9 2.3 2.3 8.1 26
YE3-112M-2 4 5.5 2905 7.83 88.1 0.88 13.1 2.3 2.3 8.3 34
YE3-132S1-2 5.5 7.5 2930 10.6 89.2 0.88 17.9 2.2 2.3 8 48
YE3-132S2-2 7.5 10 2930 14.4 90.1 0.89 24.4 2.2 2.3 7.8 53
YE3-160M1-2 11 15 2945 20.4 91.2 0.9 35.7 2.2 2.3 7.9 108
YE3-160M2-2 15 20 2945 27.2 91.9 0.91 48.6 2.2 2.3 8 116
YE3-160L-2 18.5 25 2940 34.1 92.4 0.89 60.1 2.2 2.3 8.1 135
Synchronous Speed 1500 rpm
YE3-71M1-4 0.25 0.37 1360 0.81 68.6 0.62 1.73 2.3 2.4 6 6.6
YE3-71M2-4 0.37 0.5 1360 1.14 71.2 0.62 2.54 2.3 2.4 6 7.5
YE3-80M1-4 0.55 0.75 1420 1.57 74.6 0.64 3.78 2.3 2.4 6 11.3
YE3-80M2-4 0.75 1 1420 1.86 82.5 0.74 5.04 2.3 2.3 6.3 12.8
YE3-90S-4 1.1 1.5 1445 2.68 84.1 0.74 7.27 2.3 2.3 6.5 17.5
YE3-90L-4 1.5 2 1445 3.61 85.3 0.74 9.91 2.3 2.3 6.6 21.8
YE3-100L1-4 2.2 3 1435 4.93 86.7 0.78 14.6 2.3 2.3 6.9 23
YE3-100L2-4 3 4 1435 6.66 87.7 0.78 20 2.3 2.3 7.5 28.6
YE3-112M-4 4 5.5 1440 8.56 88.6 0.81 26.5 2.3 2.3 7.6 37.5
YE3-132S-4 5.5 7.5 1460 11.6 89.6 0.82 36 2 2.3 7.7 52
YE3-132M-4 7.5 10 1460 15.3 90.4 0.83 49.1 2 2.3 7.5 56
YE3-160M-4 11 15 1465 22.3 91.4 0.82 71.7 2.2 2.3 7.4 118
YE3-160L-4 15 20 1465 30.1 92.1 0.82 97.8 2.2 2.3 7.5 156
Synchronous Speed 1000 rpm
YE3-711-6 0.18 0.25 855 0.65 63.9 0.66 2.01 1.9 2 4 9.3
YE3-712-6 0.25 0.37 855 0.81 68.6 0.68 2.79 1.9 2 4 9.7
YE3-801-6 0.37 0.5 890 1.09 73.5 0.7 3.97 1.9 2 4.7 12.2
YE3-802-6 0.55 0.75 890 1.5 77.5 0.72 5.9 1.9 2.1 4.7 13.2
YE3-90S-6 0.75 1 935 2.03 78.9 0.71 7.66 2 2.1 6 14
YE3-90L-6 1.1 1.5 945 2.83 91 0.73 11.1 2 2.1 6 18
YE3-100L-6 1.5 2 949 3.78 82.5 0.73 15.1 2 2.1 6.5 29.5
YE3-112M-6 2.2 3 955 5.36 84.3 0.74 22 2 2.1 6.6 32
YE3-132S-6 3 4 968 7.2 85.6 0.74 29.6 2 2.1 6.8 43
YE3-132M1-6 4 5.5 968 9.46 86.8 0.74 39.5 2 2.1 6.8 49
YE3-132M2-6 5.5 7.5 968 12.7 88 0.75 54.3 2 2.1 7 59
YE3-160M-6 7.5 10 970 16.2 89.1 0.79 73.8 2 2.1 7 82
YE3-160L-6 11 15 970 23.1 90.3 0.8 108.3 2 2.1 7.2 118.5

Type No. Rated output Speed IN(A) EFF(%) Power
factor(cosφ)		 Rated torque(Tn) TST/TFL TMTFL IST/TFL Weight
  (Kg)
KW HP
Synchronous Speed 3000 rpm
YE4-711-2 0.37 0.5 2765 0.89 76.5 0.81 1.28 2.2 2.2 6.1 7.3
YE4-712-2 0.55 0.75 2765 1.25 79.9 0.82 1.9 2.3 2.3 6.1 8.5
YE4-801-2 0.75 1 2910 1.66 81.8 0.82 2.46 2.3 2.3 7 11
YE4-802-2 1.1 1.5 2920 2.36 83.5 0.83 3.6 2.2 2.3 7.3 11.6
YE4-90S-2 1.5 2 2930 3.14 84.8 0.84 4.89 2.2 2.3 7.6 16
YE4-90L-2 2.2 3 2930 4.47 86.2 0.85 7.17 2.2 2.3 7.6 20.6
YE4-100L-2 3 4 2935 5.88 87.3 0.87 9.76 2.2 2.3 7.8 23.7
YE4-112M-2 4 5.5 2940 7.67 88.2 0.88 13 2.2 2.3 8.3 42
YE4-132S1-2 5.5 7.5 2945 10.4 89.1 0.88 17.8 2 2.3 8.3 46
YE4-132S2-2 7.5 10 2950 14.1 89.9 0.88 24.3 2 2.3 7.9 52
YE4-160M1-2 11 15 2960 20.3 90.7 0.89 35.5 2 2.3 8.1 95
YE4-160M2-2 15 20 2960 27.4 91.4 0.89 48.4 2 2.3 8.1 103
YE4-160L-2 18.5 25 2960 33.7 91.8 0.89 59.7 2 2.3 8.2 115
Synchronous Speed 1500 rpm
YE4-711-4 0.25 0.37 1355 0.66 77.9 0.74 1.76 2.1 2.2 5.2 7.2
YE4-712-4 0.37 0.5 1355 0.92 81.1 0.75 2.61 2.1 2.2 5.2 8.2
YE4-801-4 0.55 0.75 1420 1.33 83.9 0.75 3.7 2.4 2.3 5.2 10
YE4-802-4 0.75 1 1430 1.77 85.7 0.75 5.01 2.3 2.3 6.6 12.9
YE4-90S-4 1.1 15 1445 2.52 87.2 0.76 7.27 2.3 2.3 6.8 16.8
YE4-90L-4 1.5 2 1450 3.36 88.2 0.77 9.88 2.3 2.3 7 19.7
YE4-100L1-4 2.2 3 1455 4.61 89.5 0.81 14.4 2.3 2.3 7.6 25.5
YE4-100L2-4 3 4 1455 6.15 90.4 0.82 19.7 2.3 2.3 7.6 31.3
YE4-112M-4 4 5.5 1460 8.14 91.1 0.82 26.2 2.2 2.3 7.8 39.2
YE4-132S-4 5.5 7.5 1470 11 91.9 0.83 35.7 2 2.3 7.9 51.2
YE4-132M-4 7.5 10 1470 14.6 92.6 0.84 48.7 2 2.3 7.5 65
YE4-160M-4 11 15 1475 21.1 93.3 0.85 71.2 2.2 2.3 7.7 97.3
YE4-160L-4 15 20 1475 28.2 93.9 0.86 97.1 2.2 2.3 7.8 107
Synchronous Speed 1000 rpm
YE4-711-6 0.18 0.25 860 0.59 70.1 0.66 2 19 2 4 9.8
YE4-712-6 0.25 0.37 860 0.75 74.1 0.68 2.78 1.9 2 4 10.3
YE4-801-6 0.37 0.5 895 1.03 78 0.7 3.95 19 2 4.7 12.5
YE4-802-6 0.55 0.75 895 1.43 80.9 0.72 5.87 1.9 2.1 4.7 13.6
YE4-90S-6 0.75 1 950 1.94 82.7 0.71 7.54 2 2.1 6 17.2
YE4-90L-6 1.1 1.5 955 2.71 84.5 0.73 11 2 2.1 6 22.4
YE4-100L-6 1.5 2 960 3.63 85.9 0.73 14.9 2 2.1 6.5 33.5
YE4-112M-6 2.2 3 965 5.17 87.4 0.74 21.8 2 2.1 6.6 38.6
YE4-132S-6 3 4 970 6.95 88.6 0.74 29.5 2 2.1 6.8 46
YE4-132M1-6 4 5.5 975 9.18 89.5 0.74 39.2 2 2.1 6.8 54
YE4-132M2-6 5.5 7.5 975 12.3 90.5 0.75 53.9 2 2.1 7 61.8
YE4-160M-6 7.5 10 980 15.8 91.3 0.79 73.1 2 2.1 7 88.3
YE4-160L-6 11 15 980 22.6 92.3 0.8 107.2 2 2.1 7.2 125

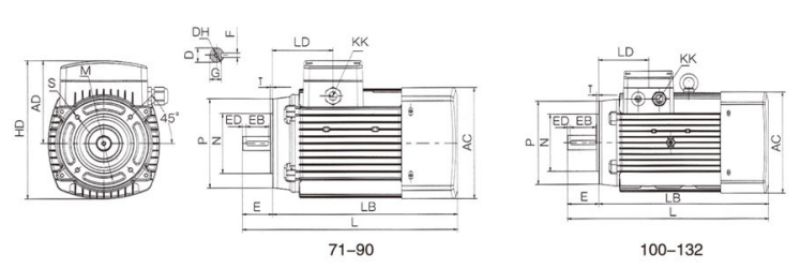

IM B3H71-160

Type No. A AC AD B C D DH E EB ED F G H HA K KK L LD
71 112 139 105 90 45 14 M5X12 30 25 2.5 5 11 71 10 7X10 1-M18X1.5 255 79.5
80 125 148 110 100 50 19 M6X16 40 30 5 6 15.5 80 11 10X14 1-M18X1.5 286 80.5
90S 140 169 125 100 56 24 M8X19 50 40 5 8 20 90 12 10X14 2-M22X1.5 310 89
90L 140 169 125 125 56 24 M8X19 50 40 5 8 20 90 12 10X14 2-M22X1.5 330 89
100L 160 194 137 140 63 28 M10X22 60 50 5 8 24 100 15 12X16 2-M22X1.5 384 95.5
112M 190 218 157 140 70 28 M10X22 60 50 5 8 24 112 15 12X16 2-M25X1.5 395 101
132S 216 254 175 140 89 38 M12X28 80 65 7.5 10 33 132 16 13X16 2-M25X1.5 458 110
132M 216 254 175 178 89 38 M12X28 80 65 7.5 10 33 132 16 13X16 2-M25X1.5 514 110
160M 253 315 196 210 110 42 M16X36 110 90 10 12 37 160 21 16X18 2-M30X1.5 602 176
160L 253 315 196 254 110 42 M16X36 110 90 10 12 37 160 21 16X18 2-M30X1.5 644 176


IM B14H71-160

Type No. A AC AD B C D DH E EB ED F G H HA K KK L LD
71 112 139 105 90 45 14 M5X12 30 25 2.5 5 11 71 10 7X10 1-M18X1.5 255 79.5
80 125 148 110 100 50 19 M6X16 40 30 5 6 15.5 80 11 10X14 1-M18X1.5 286 80.5
90S 140 169 125 100 56 24 M8X19 50 40 5 8 20 90 12 10X14 2-M22X1.5 310 89
90L 140 169 125 125 56 24 M8X19 50 40 5 8 20 90 12 10X14 2-M22X1.5 330 89
100L 160 194 137 140 63 28 M10X22 60 50 5 8 24 100 15 12X16 2-M22X1.5 384 95.5
112M 190 218 157 140 70 28 M10X22 60 50 5 8 24 112 15 12X16 2-M25X1.5 395 101
132S 216 254 175 140 89 38 M12X28 80 65 7.5 10 33 132 16 13X16 2-M25X1.5 458 110
132M 216 254 175 178 89 38 M12X28 80 65 7.5 10 33 132 16 13X16 2-M25X1.5 514 110
160M 253 315 196 210 110 42 M16X36 110 90 10 12 37 160 21 16X18 2-M30X1.5 602 176
160L 253 315 196 254 110 42 M16X36 110 90 10 12 37 160 21 16X18 2-M30X1.5 644 176


IM B3/B35 H71-160

Type No. Extreme number A AC AD B C D DH E EB ED F G H HA KK L LD M N P S T
71 2/4 112 139 105 90 45 14 M5X12 30 25 2.5 5 11 71 10 1-M18X1.5 255 79.5 130 110 160 10 3
80 2/4 125 148 110 100 50 19 M6X16 40 30 5 6 15.5 80 11 1-M18X1.5 286 80.5 165 130 200 12 3
90S 2/4 140 169 125 100 56 24 M8X19 50 40 5 8 20 90 12 2-M22X1.5 310 89 165 130 200 12 3
90L 2/4 140 169 125 125 56 24 M8X19 50 40 5 8 20 90 12 2-M22X1.5 330 89 165 130 200 12 3
100L 2/4 160 194 137 140 63 28 M10X22 60 50 5 8 24 100 15 2-M22X1.5 384 95.5 215 180 250 15 4
112M 2/4 190 218 157 140 70 28 M10X22 60 50 5 8 24 112 15 2-M25X1.5 395 101 215 180 250 15 4
132S 2/4 216 254 175 140 89 38 M12X28 80 65 7.5 10 33 132 16 2-M25X1.5 458 110 265 230 300 15 4
132M 2/4 216 254 175 178 89 38 M12X28 80 65 7.5 10 33 132 16 2-M25X1.5 514 110 265 230 300 15 4
160M 2/4 254 311 241 210 108 42 M16X36 110 90 10 12 37 160 21 2-M30X1.5 612 151 300 250 350 18.5 5
160L 2/4 254 311 241 254 108 42 M16X36 110 90 10 12 37 160 21 2-M30X1.5 656 150 300 250 350 18.5
